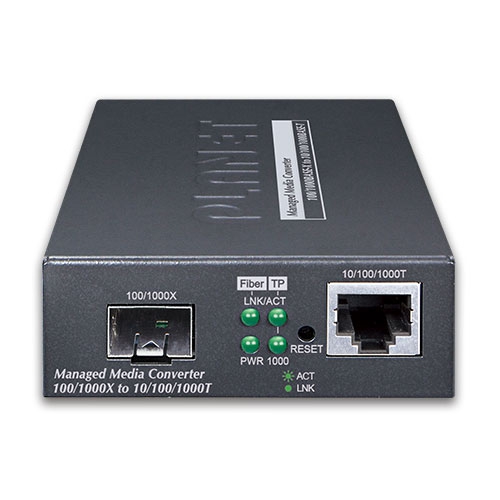

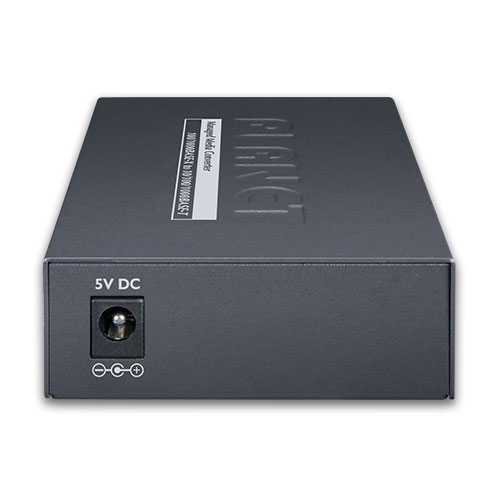

RPS13S J200A Optical Fiber Converter

The RPS13S J200A Optical Fiber Converter is quite different from the earlier version of PLANET media converter family that needs to obtain power from DC power adapter; it can power on via various IEEE 802.3at/bt PoE PSE equipment.

Available-in-StockQuick Quotation

Technical Specifications

  • Fiber Port Type (connector)  SFP (LC)
  • Copper Maximum Distance  100m
  • Fiber Maximum Distance  Vary by SFP Transceiver
  • LED Indicator  System: Power x 1 (Green)
  • TP LINK/ACT, 1000 LINK/ACT (Green). PoE In (Amber)
  • Fiber LINK/ACT (Green)
  • DIP Switch  LFP function (Disable / Enable) setting
  • Power Consumption  DC 48V PoE In: 3.1 watts/10.5BTU
  • DC 54V PoE In: 3.2watts/10.9BTU
  • Power Requirements  IEEE 802.3af/at/bt PoE 48V-54V DC in-line power or optional DC 5V/2A external power adapter(Not included in standard package)
  • Dimensions (W x D x H)  94 x 70.3 x 26.2 mm
  • Weight  186g
